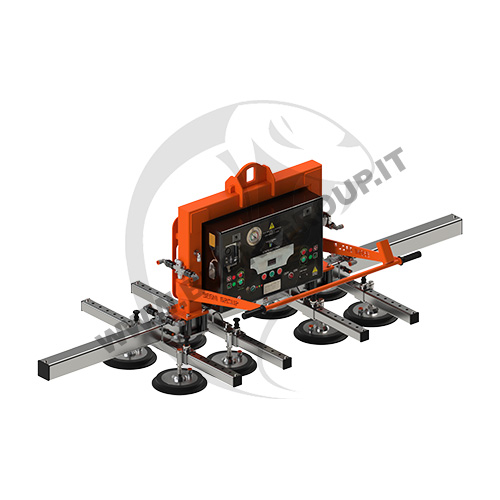

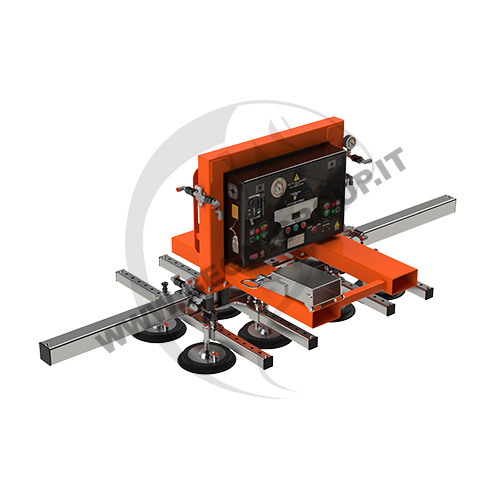

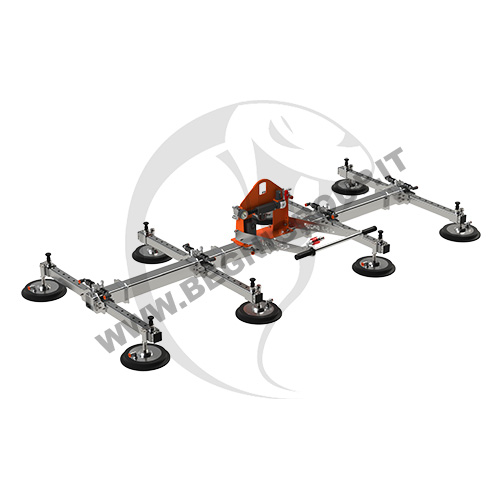

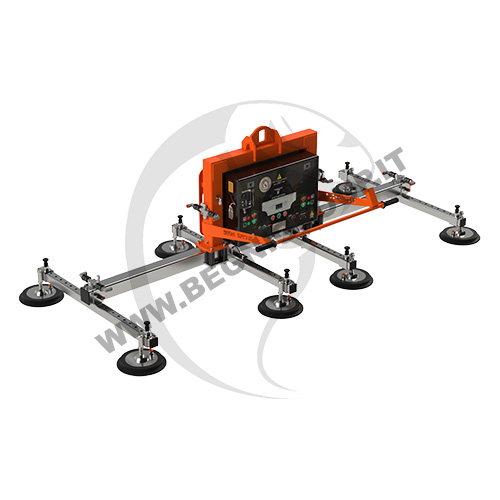

The sheet metal suction cups allow, through lifting systems (overhead crane, jib crane, suspended systems, forklifts, truck cranes), to lift and move flat, non-wrinkled sheets of different metals (carbon steel, aluminum, stainless steel, copper).
The sheet metal suction cups are made from a load-bearing frame on which four to twelve suction plates are installed.
Begni Group, through a network of selected partners, verifies the structural dimensioning, shape, number, type of suspension attachments and type of accessories of each piece of equipment. Begni Group provides “turnkey” solutions by developing projects based on specific customer requirements.
Begni Group monitors its partners with constant audits, verifying that the design, carpentry, painting and assembly activities satisfy the requirements of the end-user customer. The CE certification and the Declaration of Conformity are drawn up in compliance with the binding standard EN13155.
It is possible to apply the NFC-RFID (Tech for Safety) microchip to the product plate to have documentation at hand, traceability, pre-use checks, quarterly inspections.
The range includes suction cups for:
■ insulated panels,
■ sandwich panels,
■ glass,
■ marble,
■ wood.
■ Easy and safe to use.
■ Possibility of applying the NFC-RFID microchip for digital management of the product with the RiConnect software (documentation, traceability, pre-use control, quarterly inspections).
■ High strength steel structure 2~6 axis.
■ Suction plates:
- 4~12 suction plates with capacities from 25 to 1500 kg.
- Steel or aluminum core, with external lip in anti-oil rubber.
- Thrust spring to allow optimal grip of the material.
■ 2 types of power supply:
- Compressed air (4 / 6 bar) by Venturi pump.
- Vacuum pump powered by 380 Volt three-phase or 220 Volt single-phase.
■ Vacuum tank to ensure grip even in the event of a sudden power failure of the pump.
■ Acoustic and visual alarm system powered by a rechargeable battery.
■ Handle with controls for gripping and detaching the material.
■ WLL up to 2 t.
■ CE declaration of conformity, use and maintenance manual.
For further information, please contact us: our sales technicians will indicate you the most suitable products for your applications.
